Color
Graphite / Graphite
Herman Miller · 2009–Present

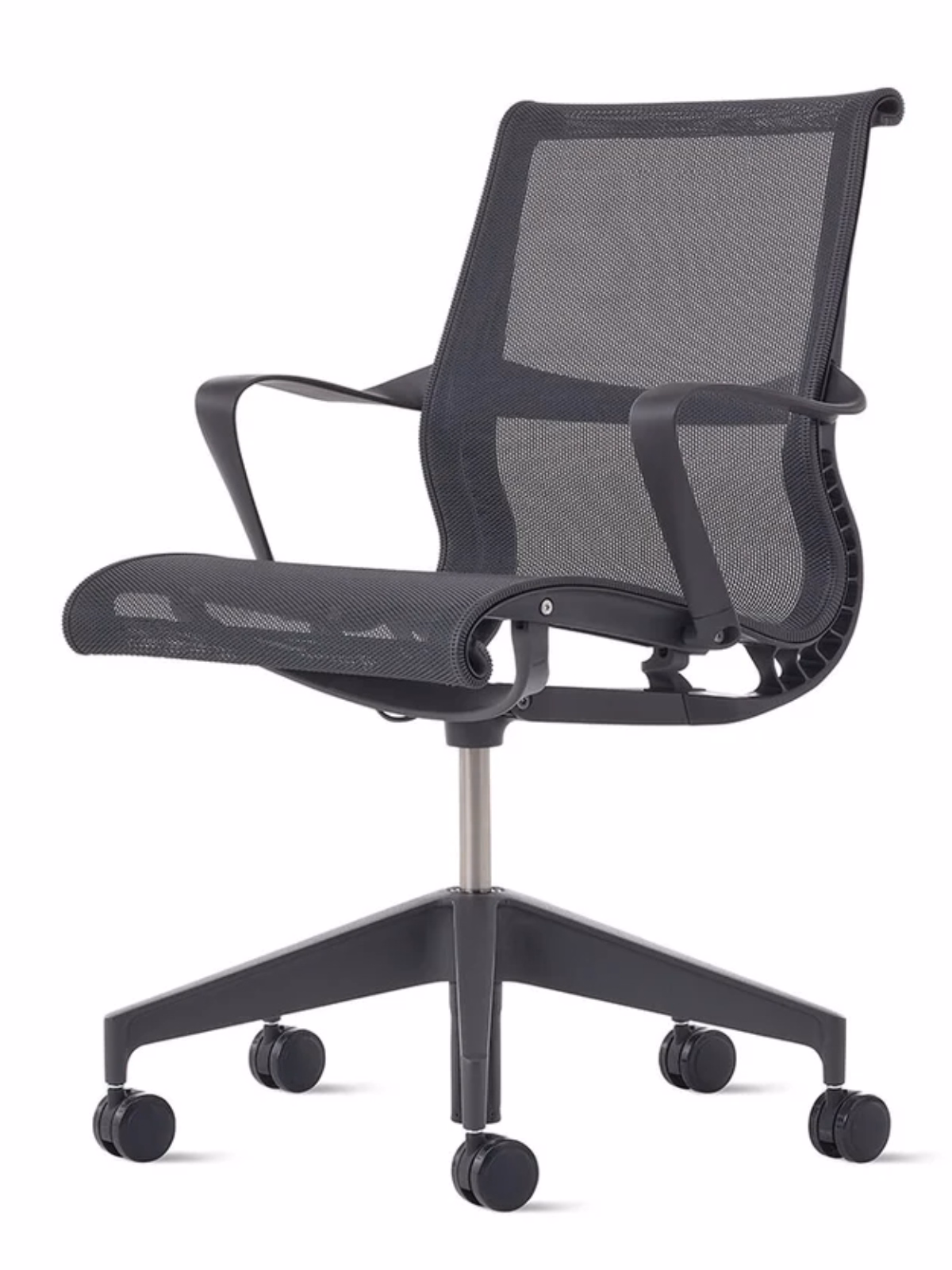

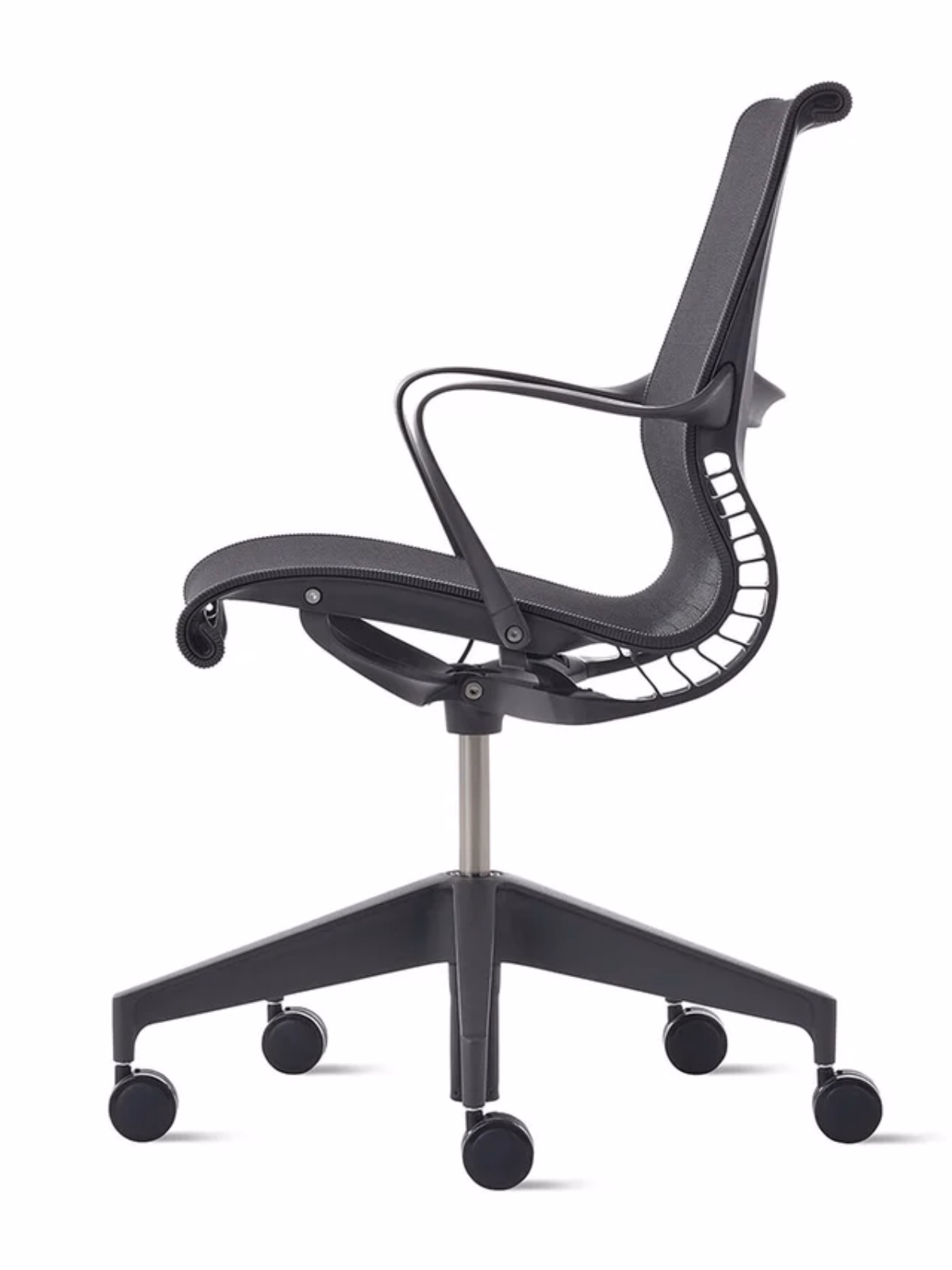

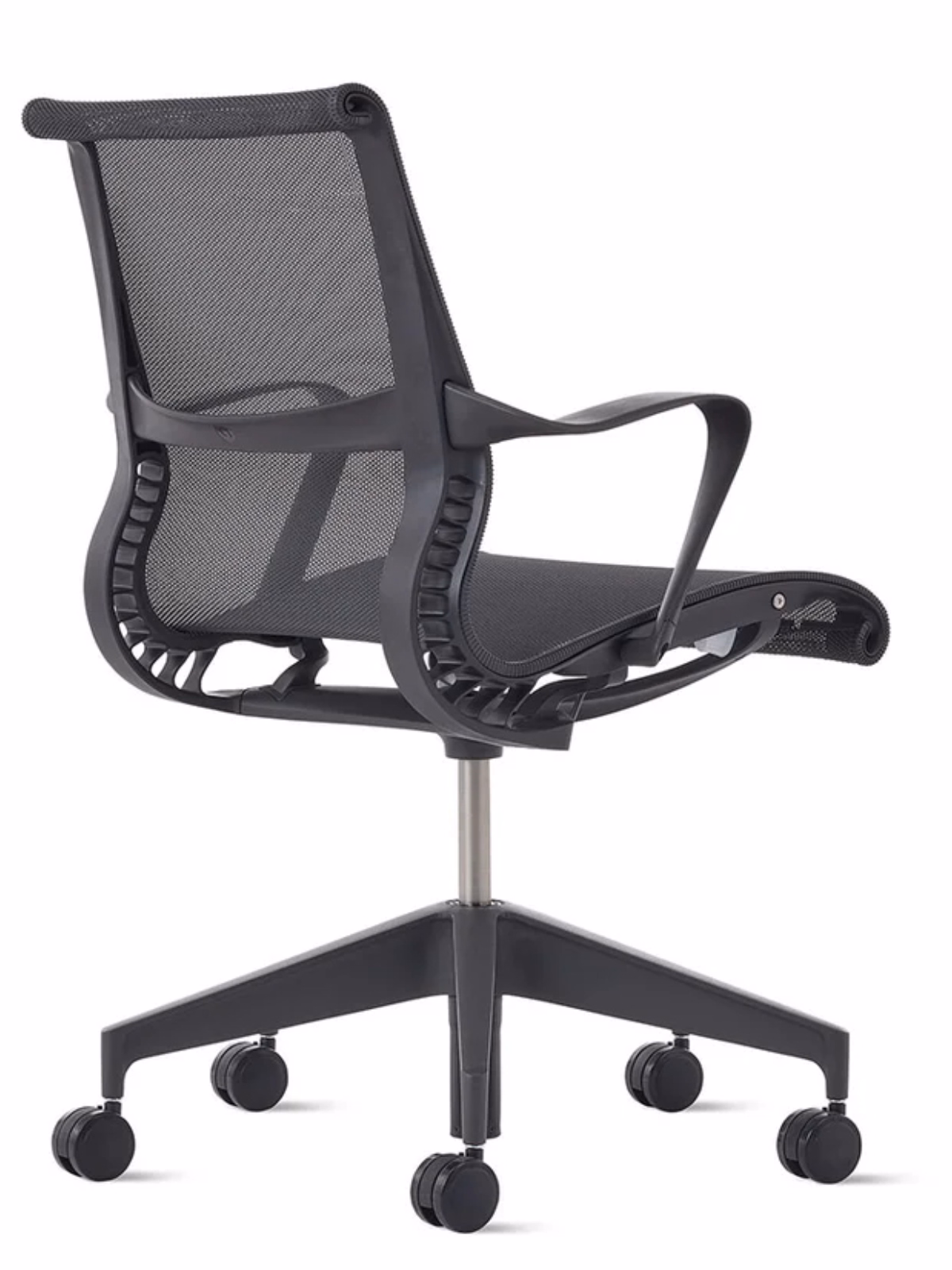

Setu
Ultra-simple multipurpose HM—fixed 15" seat depth, 300 lb, almost no knobs.
Bottom line
Buy Setu only if you want an ultra-simple multipurpose HM—not a full dial-in task chair. Fixed ~15" seat depth, 300 lb capacity, Kinematic Spine flex, and fixed arms or armless only. One height adjustment; practical fit roughly 4'10"–6'2". Poor match if you need seat-depth or 4D arms.
Where to buy
Typical prices — new ~$1,065, refurbished ~$550, used ~$320.
We may earn a commission from affiliate links, at no extra cost to you. Disclosure
Fit
Set your height and weight once — we'll check this chair and keep the profile for the rest of the site.
Units
Spec sheet
- Typical configuration
- Multipurpose chair with arms, standard-height 5-star base
- Era produced
- 2009–Present
- Discontinued
- No
- Approx. MSRP (new)
- $1,065
- Typical refurbished price
- $550
- Typical used price
- $320
- Height range
- 147–188 cm
- Weight capacity
- 136 kg
- Seat width
- 47 cm
- Seat depth
- 38 cm
- Backrest height
- 51 cm
- Seat material
- Elastomer
- Armrest type
- Fixed
- Arm adjustability
- Fixed arms or armless only
- Forward tilt
- No
- Lumbar
- Integrated
- Headrest
- None
- Cylinder
- Top-activated pneumatic (standard or high-height ranges)
- Caster stem
- 11mm × 22mm standard
- Frame
- Glass-filled nylon + Lyris 2 / Intercept suspension
- Tilt / lock
- Passive flex via Kinematic Spine (no multi-dial task mechanism)
Revision matrix & serial tag guide
Serial tag location: Underside of seat; Lyris/Intercept suspension and Kinematic Spine identify Setu.
| Year | Version | Changes |
|---|---|---|
| 2009 | Launch | Studio 7.5 / Yves Béhar multipurpose chair: one height adjustment, Kinematic Spine. |
Aftermarket & replacement parts
Compatible cylinder type: Top-activated pneumatic (standard or high-height ranges). Caster stem: 11mm × 22mm standard. Headrest availability: None.
Spec notes
- Practical default from multipurpose seat-height band 15.7"–21.7".
